Posted by Nathan Kronbeck on May 1st 2025

MHA Slick Mount Simplified: A Step-by-Step Guide to Installing on Your MECH Belt

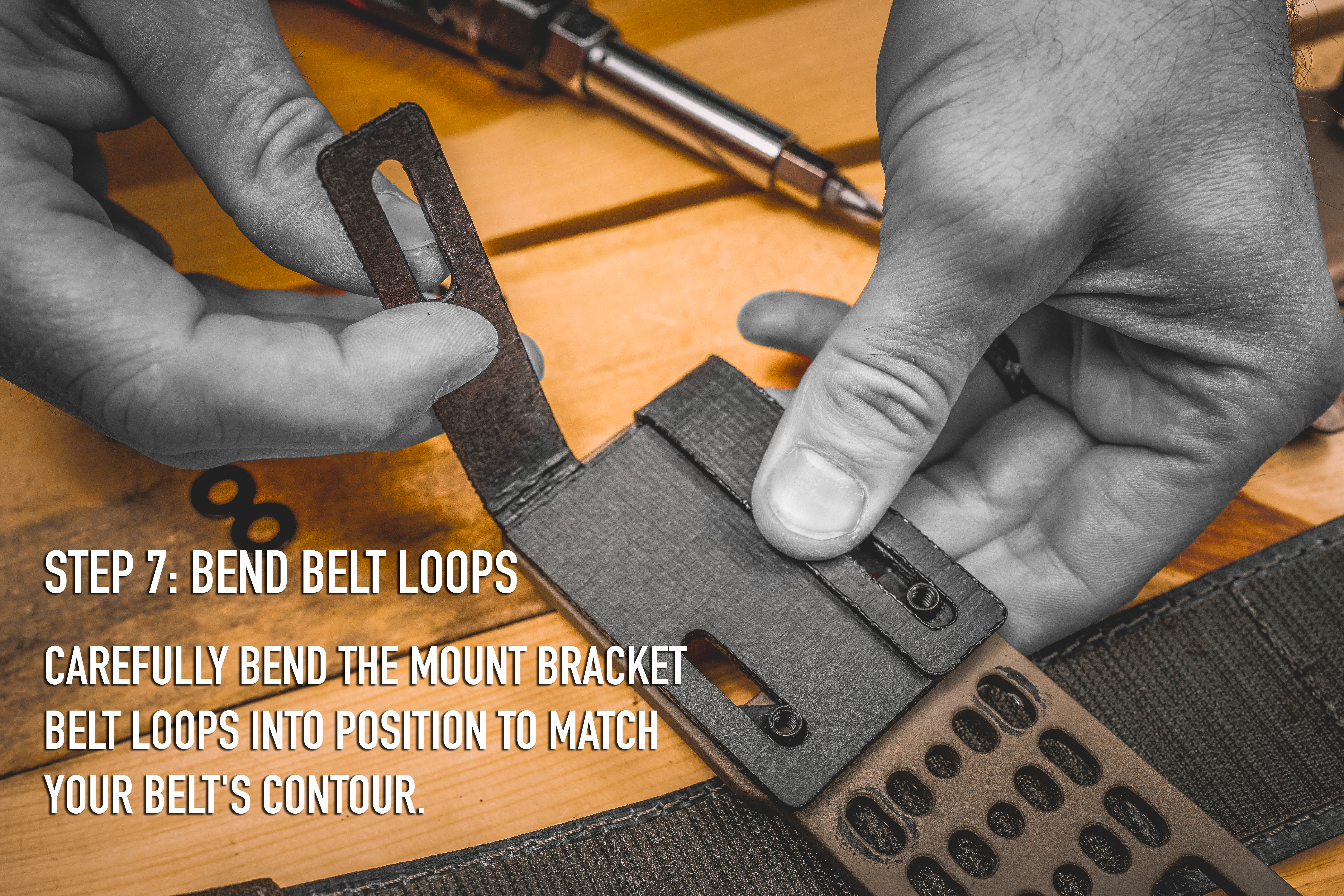

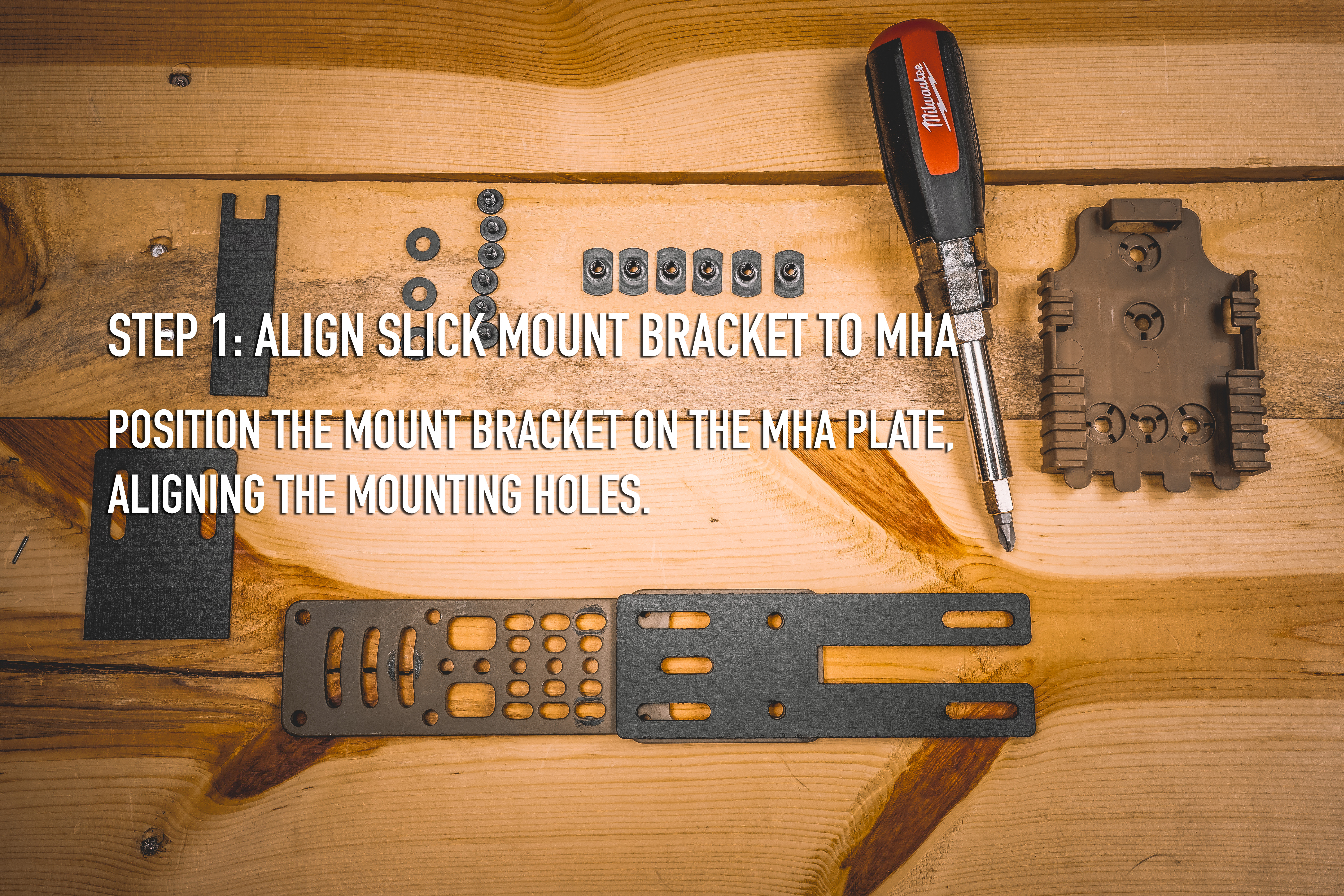

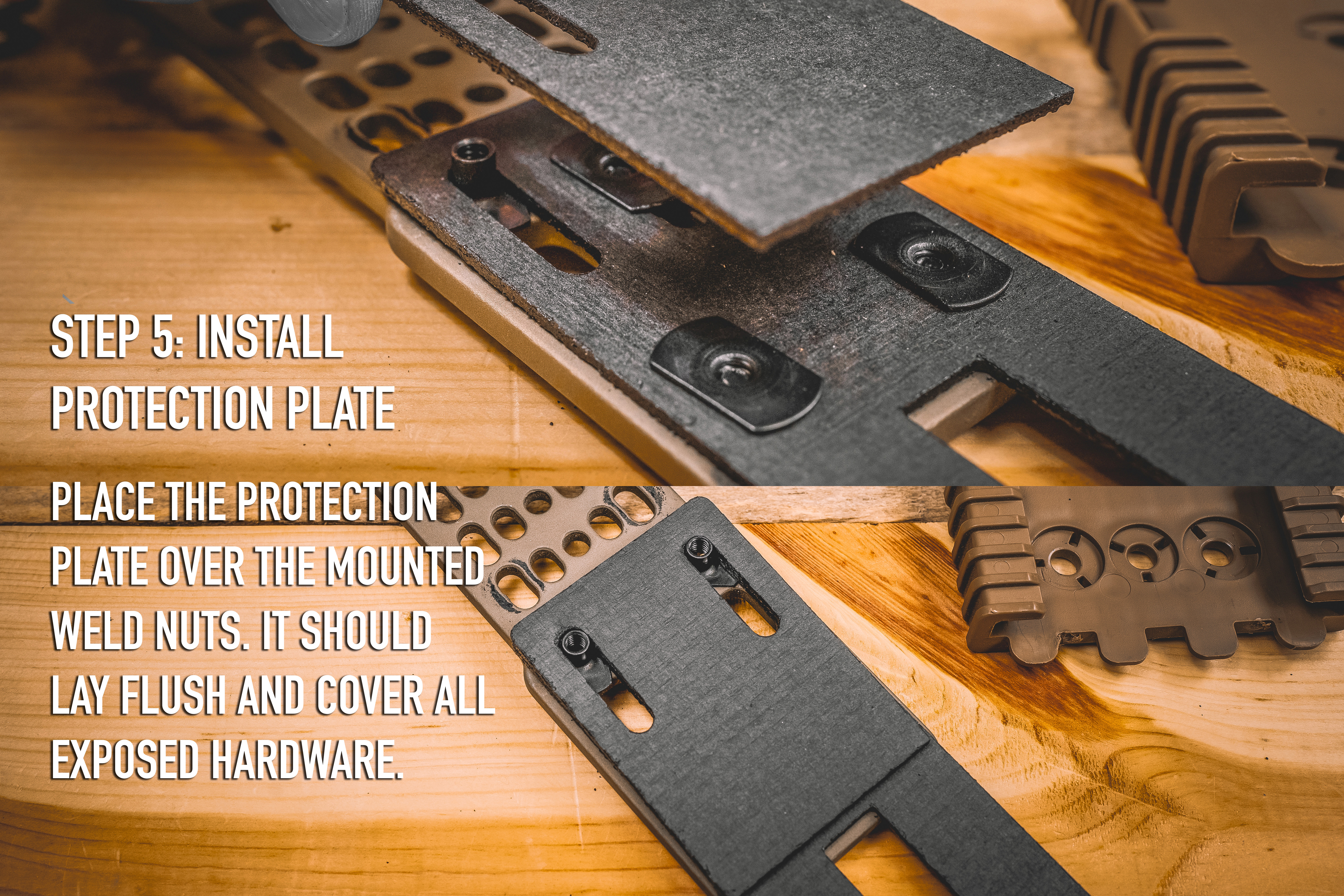

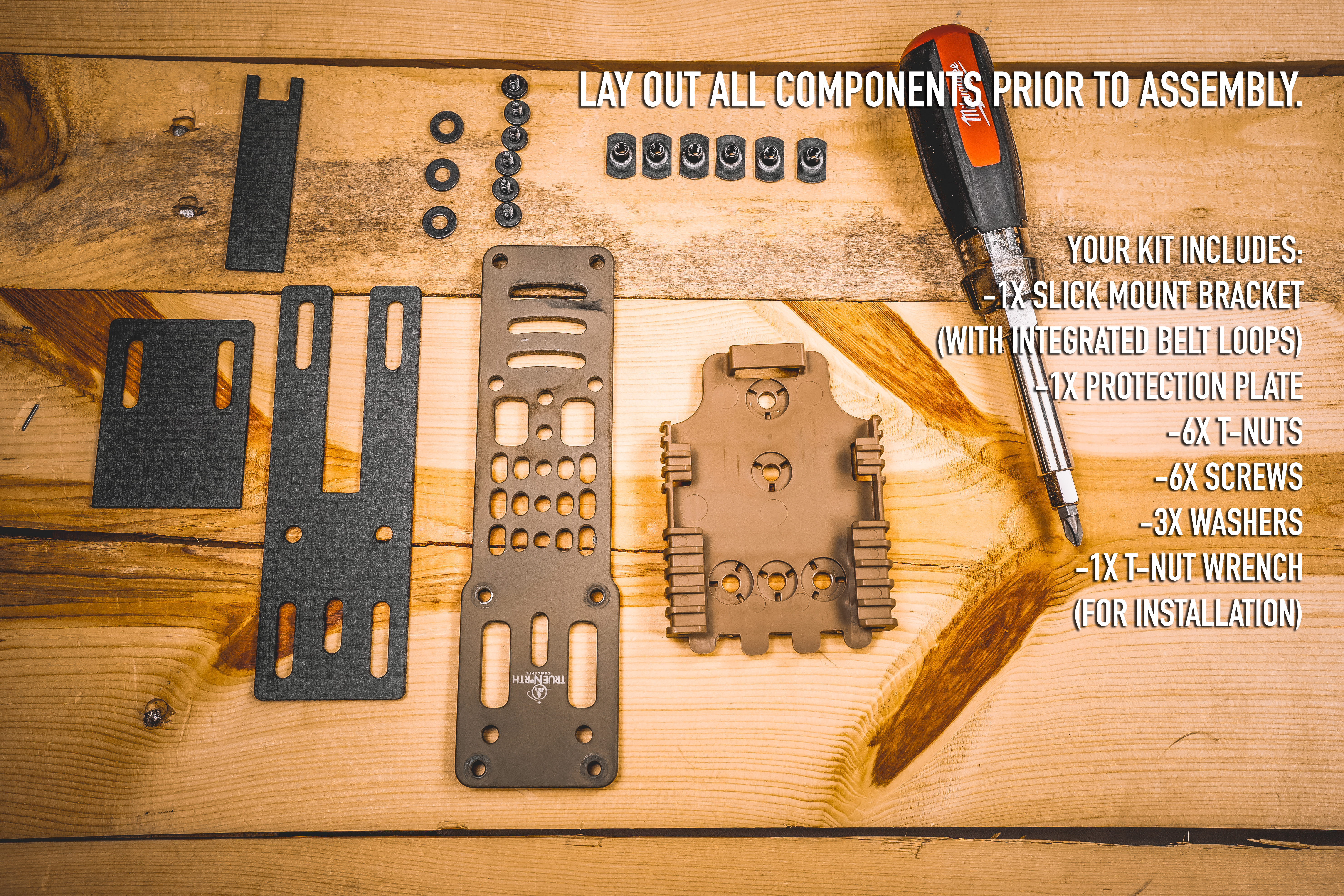

MHA Slick Mount Kit Components Lay Out All Components Prior to Assembly. Your Kit Includes: 1x Slick Mount Bracket (With Integrated Belt Loops) 1x Protection Plate 6x Weld Nuts 6x Screws 3x Washers 1x Weld Nut Wrench (For Installation) Step 1: Align Slick Mount Bracket to MHA Position the mount bracket on the MHA plate, aligning the mounting holes. Step 2: Install Top Screws Insert the top two screws through the mount bracket into the MHA plate. Leave them slightly loose for later adjustment. Should Look Like This Step 3: Insert Weld Nuts Slide two weld nuts under the mount bracket and align them with the holes. Use the weld nut wrench to position them if needed. Step 4: Install Middle Screw Insert the middle screw through the mount bracket and into the weld nut. Then tighten all three screws fully. Step 5: Install Protection Plate Place the protection plate over the mounted weld nuts. It should lay flush and cover all exposed hardware. Step 6: Belt Placement Determine desired placement on your belt before bending the loops. Step 7: Bend Belt Loops Carefully bend the mount bracket belt loops into position to match your belt’s contour. Step 8: Mount to Belt Slide the bracket onto your belt in the desired location. Step 9: Final Hardware Install Insert washers and the remaining screws through the protection plate into the weld nuts. Tighten everything down securely. Installation Complete Your Slick Mount – MHA Adapter is now fully installed and ready for use.
